Support OpenGL, which is a interface of application software that nothing to do with the hardware. And is a powerful and convenient 3D graphics library.
DDR5 adopts new frequency structure with higher memory bandwidth and better fault-tolerant performance compared to DDR3/DDR4, supporting error correction, adaptive interface timing and other new technology.
Designed for the new PCI Express 3.0 bus architecture offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications. PCI Express X16 provides ascending and descending to the bandwidth of the 4GB/s and greater than that of AGP8X 2.1GB/s of bandwidth.
HDR High Dynamic Rendering allows users to experience a realistic effect and the environment, strong brightness of sunlight, more fluid movements and finer texture details. HDR technology is completely based on hardware implementation, instead of encoding or decoding pixel shader program.
DisplayPort is an interface specification approved by the video electronics standards association (VESA). Reliable with high bandwidth, content protection technology, and can be implemented to control peripheral equipment integration, including VGA, HDMI and DVI digital interface, bring a more simple and unified peripheral devices connection.
HDMI 2.0 is compatible with all of the specifications of the HDMI before version, but special increase bandwidth to 18 GBPS, and make a key improvement to support in the consumer electronics market demand for video and audio growing experience.
NIVIDIA CUDA Technology
CUDA technology unlocks the power of the GPU's processor cores to accelerate the most demanding systems tasks – such as video transcoding – delivering incredible performance improvements over traditional CPU's.
GPU: Geforce GTX 1060
GPU Engine Specs:
Core structure: GP106
Core technology: 16nm
NVIDIA CUDA cores: 1280
Base/OC clock (MHz): 1506/1594
Boost/OC clock (MHz): 1708/1809
Memory/OC clock (MHz): 8008
Memory speed: 6144M
Standard memory config: 6GB GDDR5
Memory interface width: 192-bit
Memory bandwidth (GB/sec): 192
VR Ready: Yes
NVIDIA GPU boost: 3.0
Microsoft DirectX: 12 API with feature level 12_1
Bus Support: PCIe 3.0
OS Certificates: for Windows 7-10/Linux/FreeBSD*86
Maximum digital resolution: 7680*4320@60Hz

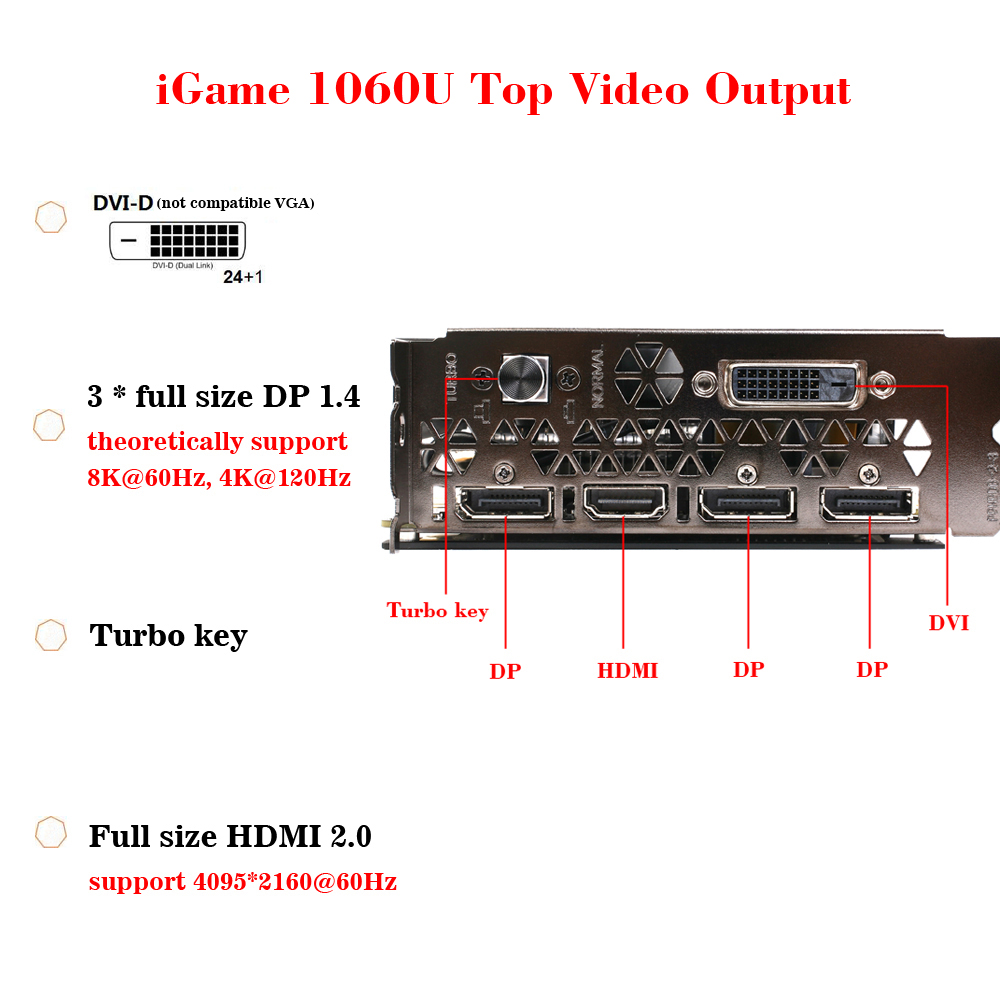

Standard display connectors: DP 1.4, HDMI 2.0b, DL-DVI-D
Thermal and Power Specs:
Thermal Design Power(TDP): 120W
Supplementary power connectors: 6+6pin
Item size: 30 * 13.5 * 4.5cm / 11.81 * 5.31 * 1.77in (L * W * H)
Package size: 38 * 24.5 * 10.3cm / 14.96 * 9.64 * 4.05in (L * W * H)
Package weight: 1430g / 3.152Lb
1 * Graphics card
1 * CD driver
2 * 6pin auxiliary power cable
1 * User manual (English, Chinese, Korean)
